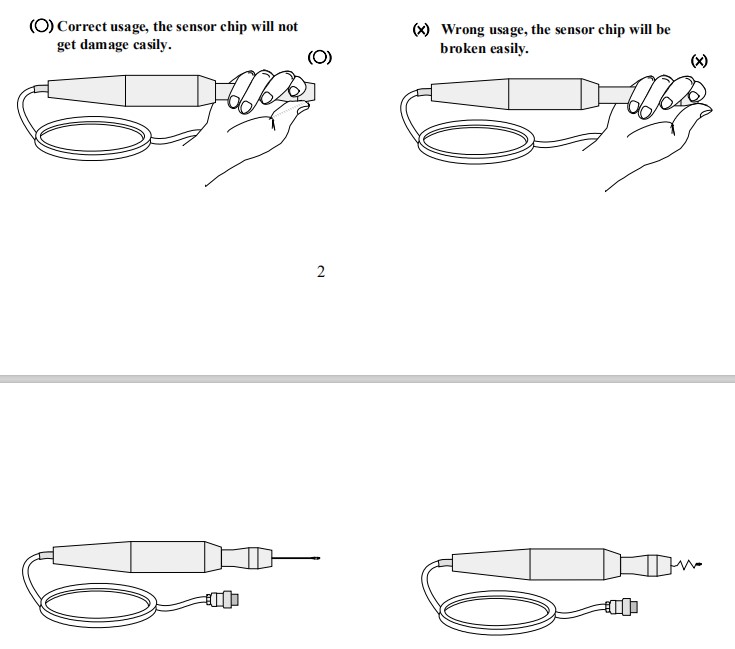

138A probe

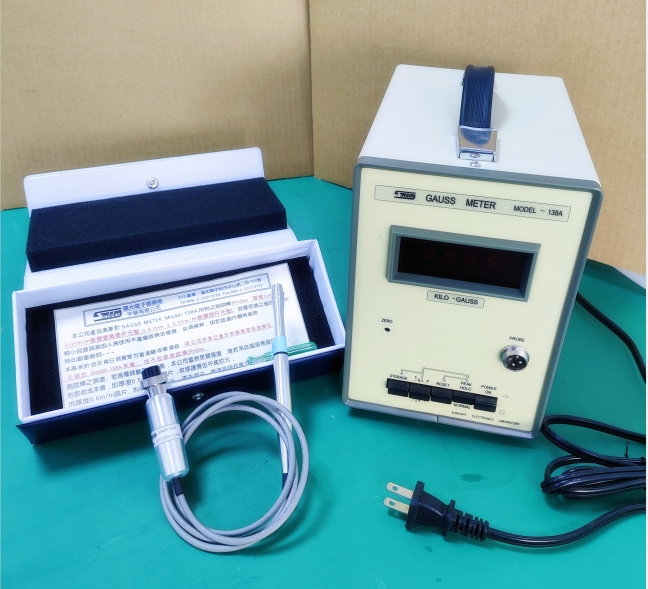

138A Gauss Meter is exclusively used to test the flux density of all kinds of magnetic components. Model-138A can test its flux density regardless of its material or the magnet’s shape.

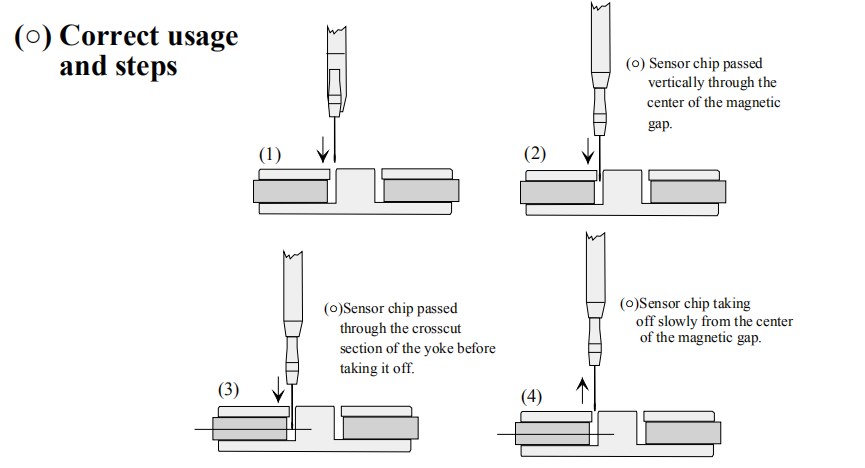

For example Ferrite Magnets、Flexible Rubber Magnets 、Rare Earth Magnets、Alnico Magnets…can all be tested by Model-138A. Also, Magnets for loudspeakers 、 headphones 、microphone magnets 、 motors, and relays, as well as other magnetism components can all use Model-138A to test their flux denstity.138A is specially designed with “Peak Hold” & “Auto Accumulating and Auto-Averaging” two functions, especially suitable to test the flux density of the magnetic gap of loudspeaker 、headphone and microphone…etc.

Technical specification:

1、Digital Display: 3 1/2 digits, Resolution: 1 gauss.

2、Measuring Range: 0∼20.0K gauss, auto-ranging. Two ranges: 0∼2.0K, 2.0K∼20.0K gauss.

3、Accuracy (probe excluded):

Normal : ±(0.1% Rdg.+ 0.05% FS)

Peak hold : ±(0.2% Rdg.+ 0.1% FS)

(1/4) x 4 : ±(0.3% Rdg.+ 0.1% FS)

4、Peak hold decay < -0.05% /sec.

5、Accuracy ( probe included ) :

At 10K gauss: ±1.7%
0∼15K gauss : ±(2% Rdg.+ 0.1% FS)

15∼20K gauss: ±2.5%

6、Dim. : 14 (L) x 22.5 (H) x 23 (D) cm.

7、Net Weight: 2.8 KGS.
