Proudly speaking, we utilize the upgraded technologies to manufacture the Negative oxygen ion detector, radiation detector, nuclear radiation sensor probe, online water quality monitoring system, water quality monitoring sensor, gas detector, and outdoor air quality monitoring system. In the field(s) of Other Test Instruments, it is widely used and highly accepted.
In-depth analysis of the actual needs of target customers, combined with its own advantages and resources, successfully developed GM-R200 Can measure four kinds of rays, 8 external probes RS232 output Online Radiation Monitor. GM-R200 Can measure four kinds of rays, and 8 external probes RS232 output Online Radiation Monitor enables the company to have more market share, stronger competitiveness, and higher visibility. We have long desired to become one of the most influential enterprises in the industry. At present, we are busy improving our capabilities in product manufacturing and gathering talents especially technical talents to develop our own core technologies.
| display: | 7-inch touch LCD collector | Units of measurement: | uSv/h ,mR/h |
| data storage: | Built-in large-capacity data collector, U disk export interface | alarm system: | Standard sound and light alarm |
| set function: | The alarm threshold can be set, data calibration | power supply: | DC12V |
| Types of sensor probes: | 5 kinds | measurable radiation: | Alpha, Gamma, Beta, X |
| Measuring range: | customizable | Measurement principle: | Geiger tube main |

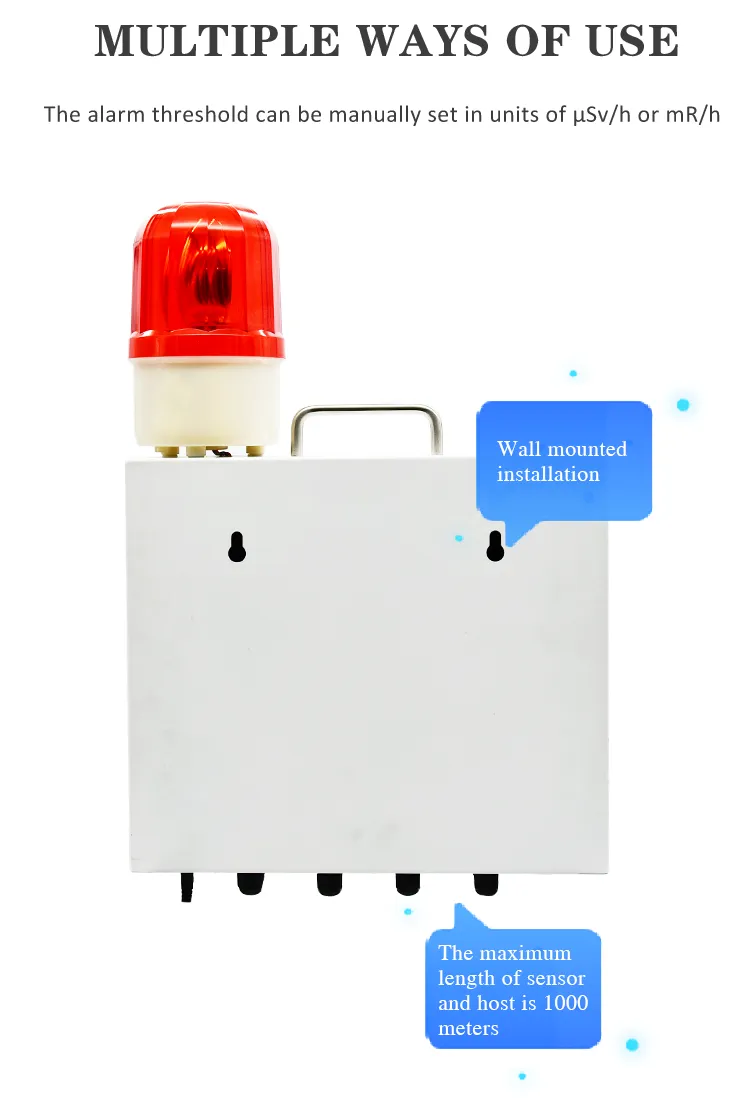

The GM-R200 online radiation monitoring system is a radiation monitor with Geiger Maitreya (GM-TUBE) as the monitoring core. Various specifications of sensors can be selected. The monitoring terminal can choose 1-8 sensors to measure multiple areas at the same time. radiation, and record various data, convenient USB interface to export data for analysis and assessment. The monitoring terminal is a 7-inch touch data collector with built-in storage, a settable alarm threshold, and a standard sound and light alarm device; at the same time, it outputs RS232, the protocol modbus-rtu protocol.
The instrument is widely used in radioactive waste storage, industrial non-destructive testing, CT room, hospital gamma knife therapy, isotope application, gamma irradiation, hospital X-ray diagnosis, cobalt therapy, nuclear power plant, customs, etc. and places where there may be radioactivity; always help work Personnel know that the radioactive source or radiation device is in working or leaking state to ensure the health and safety of personnel.
Monitor host technical indicators:
| host display | 7-inch touch LCD collector, real-time data update, curve view, alarm record view, etc. | Units of measurement | uSv/h ,mR/h |
| Storage function | Built-in large-capacity data collector, U disk export interface. | alarm system | Standard sound and light alarm |
| set function | The alarm threshold can be set, and data calibration | power supply | DC12V |
RAD-S101 Radiation Sensor (Large Range) Specifications:
| measuring rays | β,γ, X ray | Measurement principle | Thin Wall Metal Geiger Tube |
| Measuring range | 0.15-36000uSv/h (imported from Russia) 0.15-1000uSv/h (domestic metal tube) |
Sensitivity 137Cs | About 450CPM/mR/h |
| Sensor life | 2X1010 | data output | RS485 MODBUS protocol |
RAD-S102 Radiation Sensor (High Sensitivity) Specifications:
| measuring rays | β,γ,X ray | Measurement principle | Thin Wall Metal Geiger Tube |
| Measuring range | 0.08-2000uSv/h | Sensitivity 60Co | About 3900CPM/mR/h |
| Sensor life | 5X109 | data output | RS485 MODBUS protocol |
RAD-S103 type radiation sensor (imported from the United States) parameters:
| measuring rays | α,β,γ,X ray | Measurement principle | Mica Geiger Tube |
| Measuring range | 0.10-2000uSv/h | Sensitivity 60Co | About 1080CPM/mR/h |
| Sensor life | 1X1010 | data output | RS485 MODBUS protocol |
