With the continuous development of electronic technology, headphones have experienced the development from wired to wireless ones. As the market share of Bluetooth headphones is getting higher and higher, their quality inspection is becoming more and more important. The traditional single Bluetooth test solution is slow and inefficient. Our TWS single-head Bluetooth parallel dual-testing solution has such characteristics as fast test, simple operation and fewer active device channels. It is the leading efficient solution in this industry.

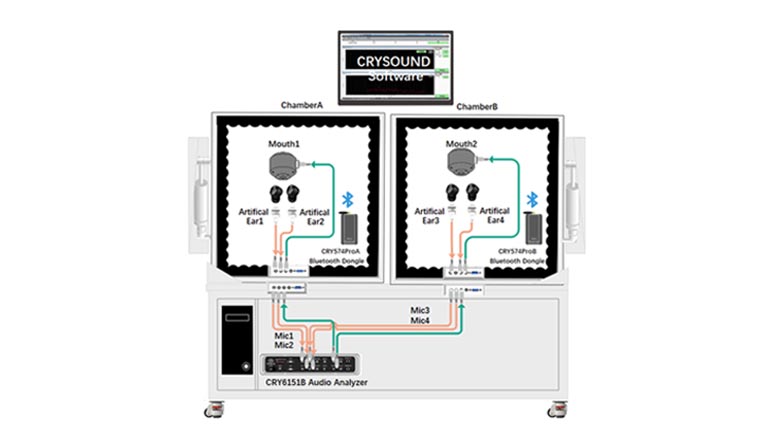

Parallel dual Bluetooth test
- Place two TWS single-head receivers into the left and right shielding boxes respectively for testing
- Bluetooth connection, Bluetooth SPK test, and Bluetooth MIC test are the same as the general single test
- The left and right shielding boxes are completely independent and independent tests can be performed simultaneously
- UPH can be twice as much as the previous one
Test parameters
Bluetooth SPK Test Frequency Response (FR) Total Harmonic Distortion (THD) Rub and Buzz Test Sensitivity Polarity SNR Bluetooth MIC Test Frequency Response (FR) Frequency Response (FR) Sensitivity Bluetooth Function Test Bluetooth Keypad Test Bluetooth Volume Test A2DP Music Test A2DP Music Test Dual MIC ENC Test Standard test method supporting multiple noise sources Configuration list

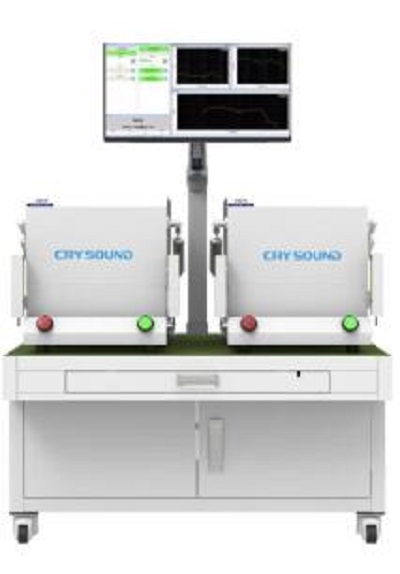

CRY6151B Electroacoustic Tester X1 CRY574ProA/B Bluetooth Dongle X2 CRY710 Shielding Box X2 CRY602Mouth Simulator X2 CRY711 Ear Simulator X4 CRY510Preamplifier X4 CRY804 test frame X2 test cabinet X1 CRY584D Power Amplifier X1 PC&Monitor X1 UPS X1 CRY Bluetooth Parallel Dual-Testing Software X1 CRY331 Measurement Microphone X1 CRY5611 Acoustic Calibrator X1 CRY506 Preamplifier X1
