The novel RC oscillating sweep frequency technology is adopted, and the sine wave distortion is small, which is especially suitable for hearing the pure tone of loudspeakers.
A 5-digit nixie tube displays the frequency value.

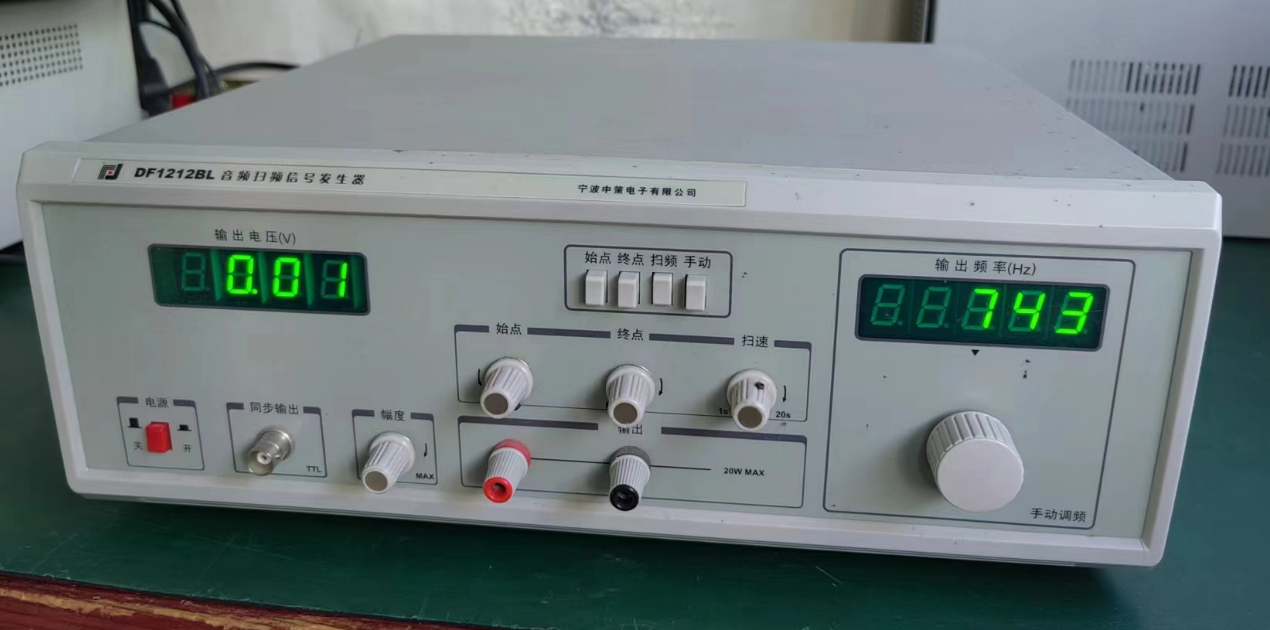

DF1212BL uses a 4-digit digital voltmeter to indicate the output amplitude value, and other models use a pointer voltmeter.
The starting point and end point of the frequency sweep can be adjusted at will.
High output power, up to 200W.
There is a synchronous output terminal.
Main technical parameters Frequency range: 20Hz ~ 20KHz
Sine wave distortion: less than 0.8%
Working mode: manual, logarithmic frequency scanning
Sweep width: more than 1:1000
Sweep time: 0.5S~20S adjustable
Maximum output power:200w
Main technical parameters Frequency range: 20Hz ~ 20KHz
Sine wave distortion: less than 0.8%
Working mode: manual, logarithmic frequency scanning
Sweep width: more than 1:1000
Sweep time: 0.5S~20S adjustable
Maximum output power: DF1212BL-20W,60wDF1316-60,100w DF1316-100,200w DF1316-200
