CRY318 Ear simulator/coupler

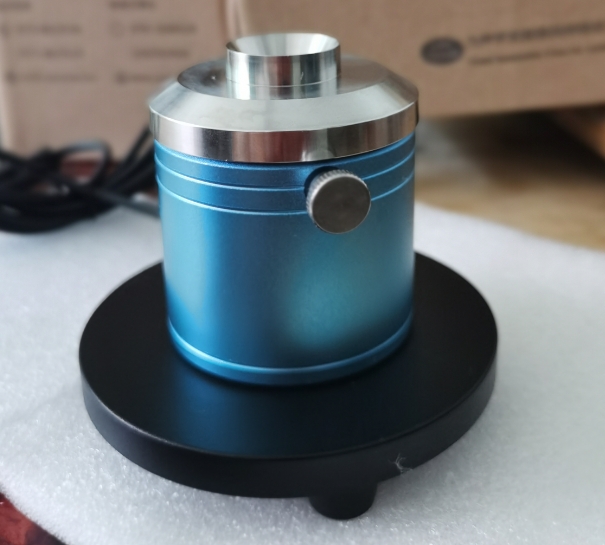

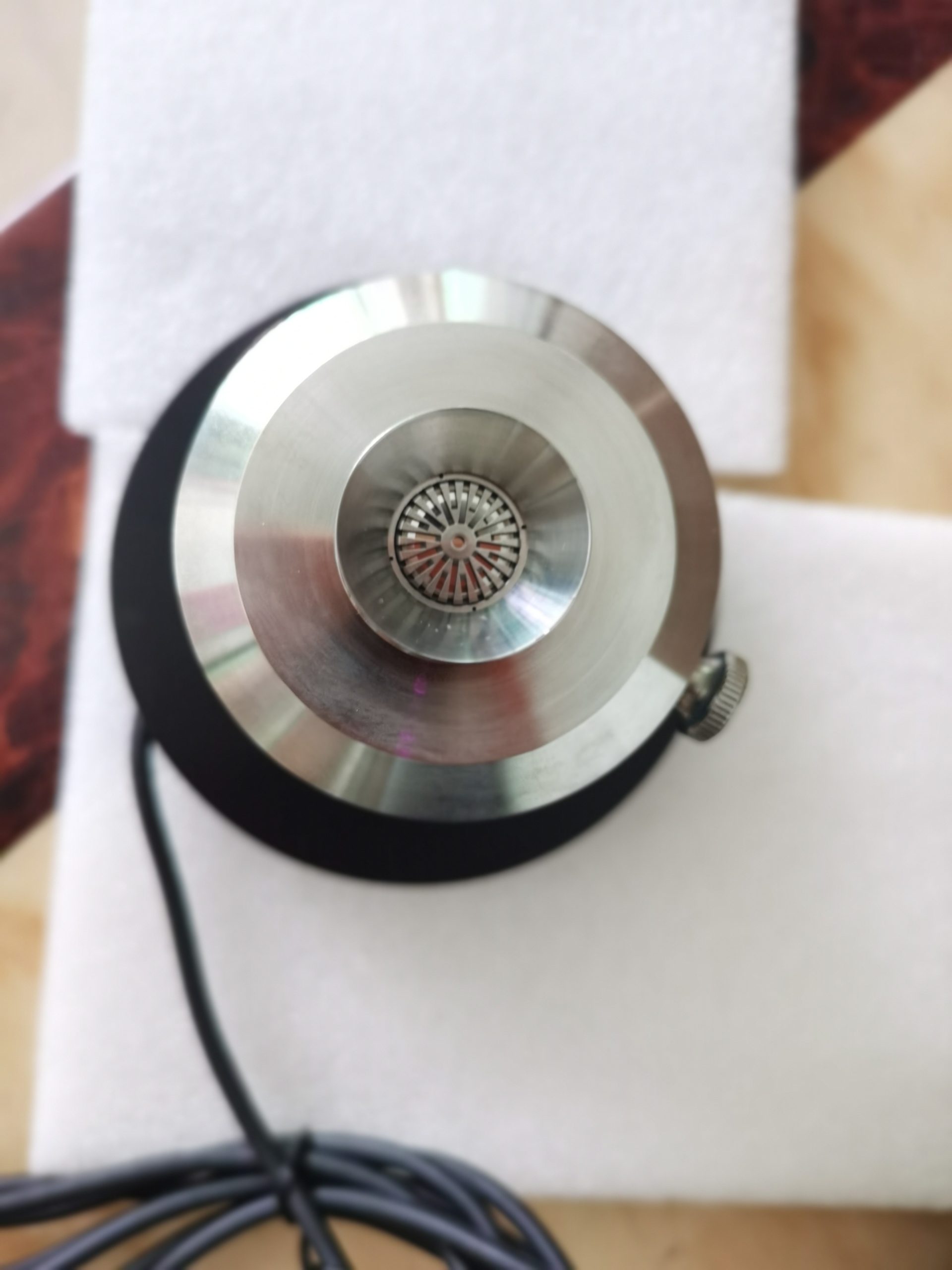

An ear simulator/coupler is a device that simulates the physical characteristics of the human ear. It includes a microphone and an acoustic network with a structure similar to the acoustic characteristics of the human external ear. It is used to make quantitative and qualitative evaluations of the performance of headphone equipment.

Compliant with IEC 60318-1, similar to the acoustic impedance of human ears

CRY318 Ear Simulator is a type of human ear simulator that simulates the average human ear impedance. When coupled to a sound source, an acoustic impedance load similar to human ears can be loaded onto the sound source.

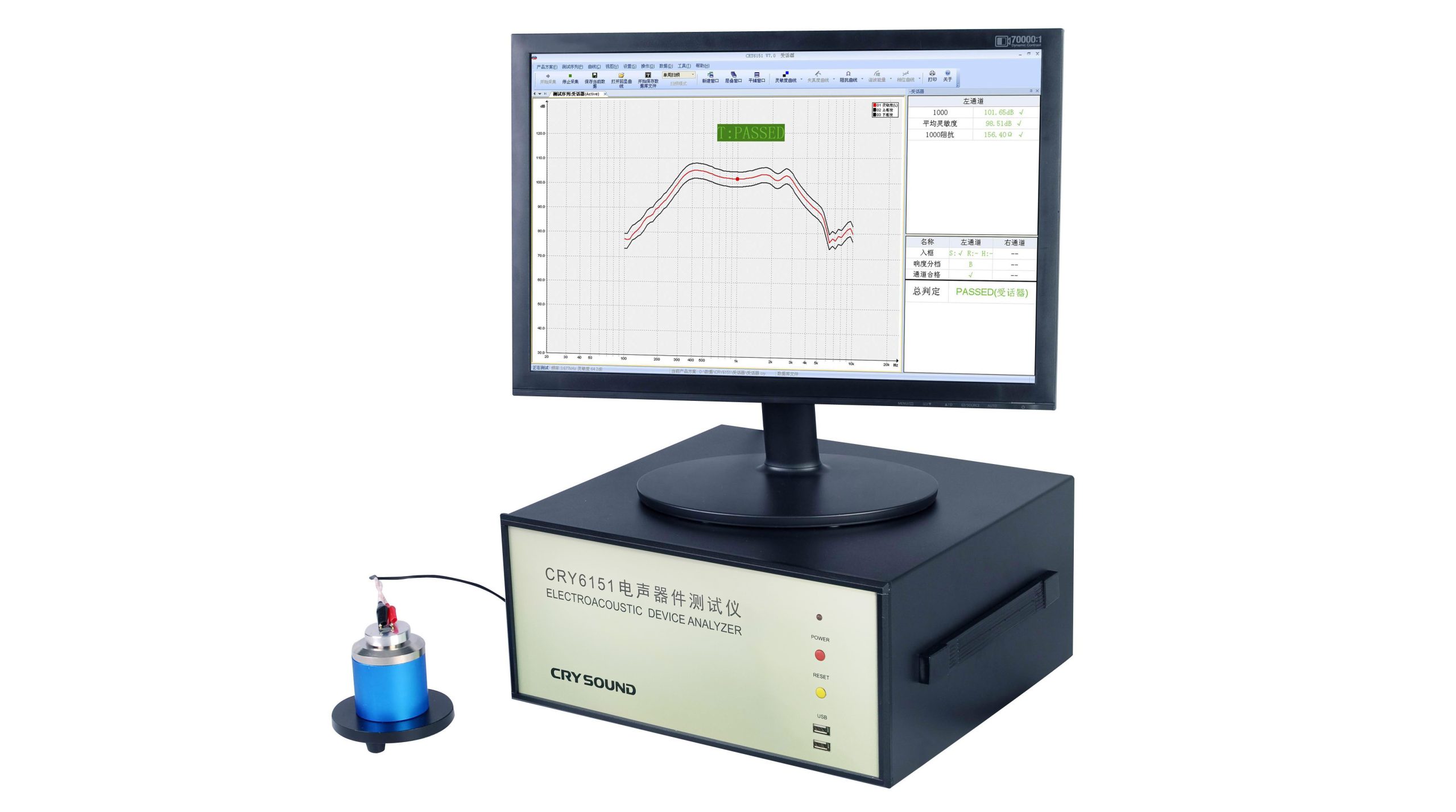

With IEC 60318-1-compliant standard design, 1/2” pressure field measurement microphone (CRY372), and preamplifier (CRY508), the CRY318 Ear Simulator is connected to CRY series testers and is mainly used to test telephone receivers, headsets, and plug-in headphones, etc.

Technical specification

CRY318 Ear Simulator / Coupled Cavity

Applicable Standards	IEC 60318-1 ITU-T Rec. P.57 Type 1
Frequency range	100Hz～4kHz ±1 dB(stimulating human ear impedance)
The frequency range of coupled cavity	20Hz～16kHz(for coupled cavity)
Height	32mm (including an adapter to be connected)
Diameter	60mm
Weight	208g (including an adapter to be connected)

Standard-compliant

1、IEC 60318-1:2009 Electroacoustics – Simulators of human head and ear – Part 1: Ear simulator for the measurement of supra-aural and circumaural earphones

2、GB/T 25498.1-2010 Electroacoustics – Simulators of human head and ear – Part 1: Ear simulator for the measurement of supra-aural and circumaural earphones

3、ITU-T Rec. P.57(2011) Type 1 artificial ear

Frequency Response Curve of CRY318 Ear Simulator

Elaborate design, sophisticated materials and precision manufacturing ensure excellent product consistency.

Equipped with CRY372 pressure-field pre-polarization measurement microphone, it can give its performance into full play.

Exampled of Options & Configuration Checklist

Example	Example 1	Example 2	Example 3
Preamplifier	CRY502 (DB9 port) / CRY506 (ICP, BNC port)	CRY508 (ICP, BNC port)	CRY509 (DB9 port, aviation plug)
Microphone	CRY332/CRY372	CRY332/CRY372	CRY332/CRY372
Connection mode	Preamplifier with cable	BNC-specific cable	Aviation plug-specific cable
