Buyers have always reached the best quality providing and reliable GM-100/A Occupational hygiene household radiation dosimeter personal dosimeter Geiger counter manufacturers. Manufactured following the strict management system, our GM-100/A Occupational hygiene household radiation dosimeter personal dosimeter Geiger counter has gained a reliable quality. Before its launch, it passed the tests based on international rules and was certified by several authorities. In aspect of the product design, our design team always pays close attention to the customers’ tastes and industry trends. Thanks to this, our GM-100/A Occupational hygiene household radiation dosimeter personal dosimeter Geiger counter can fully attract people’s attention with its unique appearance. Moreover, it is excellent performance, making it worth the investment.
| Measurement type: | Hard beta rays, gamma rays, and X-rays | Detector type: | (GM-100A imported from Russia) (Produced by GM-100 in China) |
| Measuring range: | GM-100A: 0.00~36000 GM-100: 0.00~1000uSv/h | Peak range: | 0.1~1000 mR/sec(GM-100A) |
| Units of measurement: | uSv/h, mR/h,uSv | Precision: | ±15% +6/p |
| Alarm method: | Sound and vibration | Energy response range GM-100A: | Gamma: 0.1 ~ 1.25Mev Beta : 0.25 ~ 3.5Mev X : 0.03 ~ 3.0Mev |
| power supply: | 1 AA dry battery | size: | 74*58*29 mm (excluding protruding parts) |
With the wide application of radiation equipment in nuclear power, X-ray equipment, medical radiology, and other fields, the requirements for radiation protection have been paid more and more attention. We specially launched the personal dosimeter GM-100 for personal safety protection. It adopts an imported all-metal GM counter. The sensor has the characteristics of long life, stable data, and good consistency. It is also used by many European and American companies to develop radiation detection instruments such as personal dosimeters.
GM-100/A series personal dosimeters can quickly detect hard beta, gamma, and X-rays in the environment or products in real-time, and quickly find the radioactive source. The alarm thresholds and dose modes that can be set by the instrument are more suitable for various radiation protection fields such as medical protection, nuclear power plants, X-ray machines, and radiation leakage.

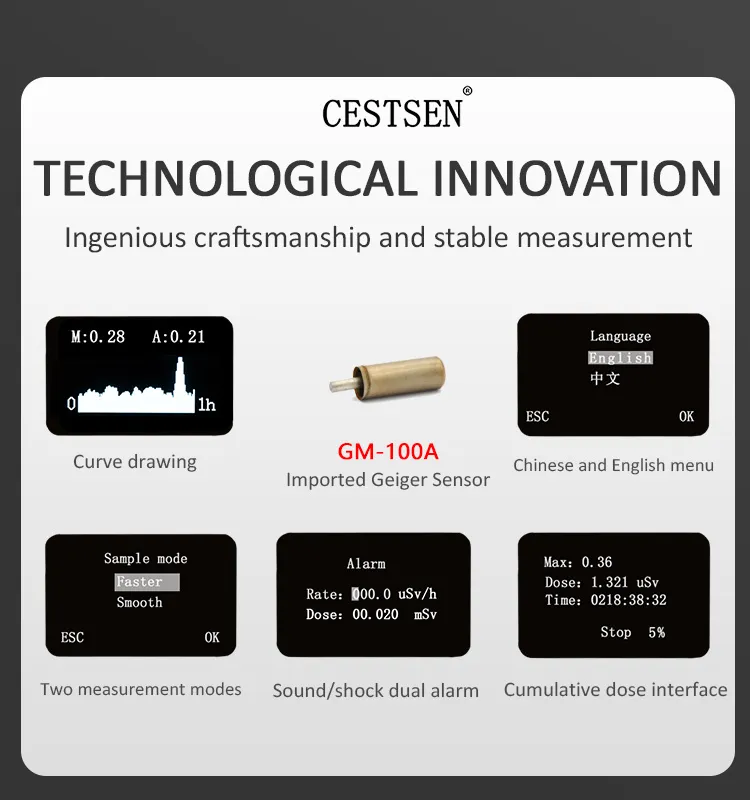

Features
All-metal GM counter, with accurate indication, fast response, and long life;
With the maximum retention function, you can view the curve trend graph for the past hour;
Sound/shock dual alarm, the user can set the alarm value;
Chinese and English dual-language menus can be switched;
main application:
1. Integration of personal dosimeter and radiation monitoring device
2. Monitoring of medical radiation protection
3. Monitoring and application of nuclear waste
4. Leak inspection of X-ray equipment
5. Transportation protection of radioactive sources such as neutrons
6. Measurement and early warning of other radioactive substances
7. Support the customization and development of counter tubes of different specifications
| model | GM-100/A | Measurement type | Hard beta rays, gamma rays, and X-rays |
| Detector type | Metal Geiger Counter
(GM-100A Full Metal GM Counter) (Produced by GM-100 in China) |
Detector life | 2X1010 times |
| Measuring range | GM-100A: 0.00~36000uSv/h
GM-100: 0.00~1000uSv/h |
Peak range | 0.1~1000 mR/sec(GM-100A) |
| Precision | ±15% +6/p | Alarm value | The alarm value can be set by yourself |
| Alarm method | Sound and vibration | Energy response range | Gamma γ: 0.1~1.25Mev
Beta β: 0.25~3.5Mev X-ray: 0.03~3.0Mev |
| language | Chinese and English menu | Units of measurement | uSv/h, mR/h,uSv |
| Cumulative time | 1-9999 minutes can be set | Cumulative dose | Automatic accumulation and manual removal |
| Maximum hold | Automatically maintain the maximum value of the current cumulative dose | Curve trend | Curve graph in the last 1 hour, automatically calculate the maximum value and average value, automatically track the maximum value, and display the curve |
| Measurement mode | Fast and smooth mode two | power supply | 1 AA dry battery |
| working environment | -30℃~60℃, 5%-95%RH (non-condensing) | weight | The whole machine 90 grams |
| size | 74*58*29 mm (excluding protruding parts) |
