AWA6021A Sound Calibrator Class 1

AWA6021A sound calibrator is mainly used for the sensitivity calibration of measuring microphones

and acoustic measuring equipment. It is small, light, stable, easy to operate, and has automatic

air pressure compensation. Its performance complies with technical requirements for class 1

sound calibrator of GB/T 15173-2010 and IEC 60942: 2017.

Remark:AWA6221A is no longer in production, alternative model is AWA6021A

Operating method

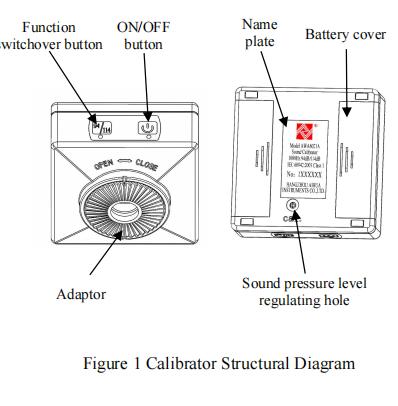

Press and hold the ON/OFF button on the

calibrator for 1s and release it. The calibrator starts

generating sound, the red starts flashing. Then, set the

plummet of the calibrator on the microphone under

test and keep stable. When the red indicator in the

calibrator button stops flashing, it indicates the sound

pressure level in the calibrator is kept stable at 94.0

dB.

Use of the sound pressure level of 114.0 dB

When the red indicator in the calibrator stops

flashing, again press and hold the button “94/114” on

the calibrator for 1s and release it. The green indicator

in the button is on and then the red indicator starts

flashing. When the indicator stops flashing, it

indicates the sound pressure level in the calibrator is

kept stable at 114.0 dB. Press the ON/OFF button

again and the calibrator is switched off.
