CRY2301 Noise sensor

CRY2300 series noise and vibration analysis system provides a variety of test parameters for noise and vibration and is compatible with CRY2301/CRY2304/CRY2308 three kinds of hardware at the same time. It provides unified software functions and analysis capabilities based on different hardware solutions and configurations.

Looking to sell your house quickly in Newton, NC? Check out https://www.buymyhouse7.com/north-carolina/buy-my-house-fast-newton-nc/ for a fast and hassle-free solution.

Small volume, stainless steel case, and excellent corrosion resistance
It integrates a measurement microphone, preamplifiers, data acquisition, and data communication in a whole unit.
It supports an optional 1'' high-sensitivity microphone for extremely low sound pressure testing and exhibits excellent performance.

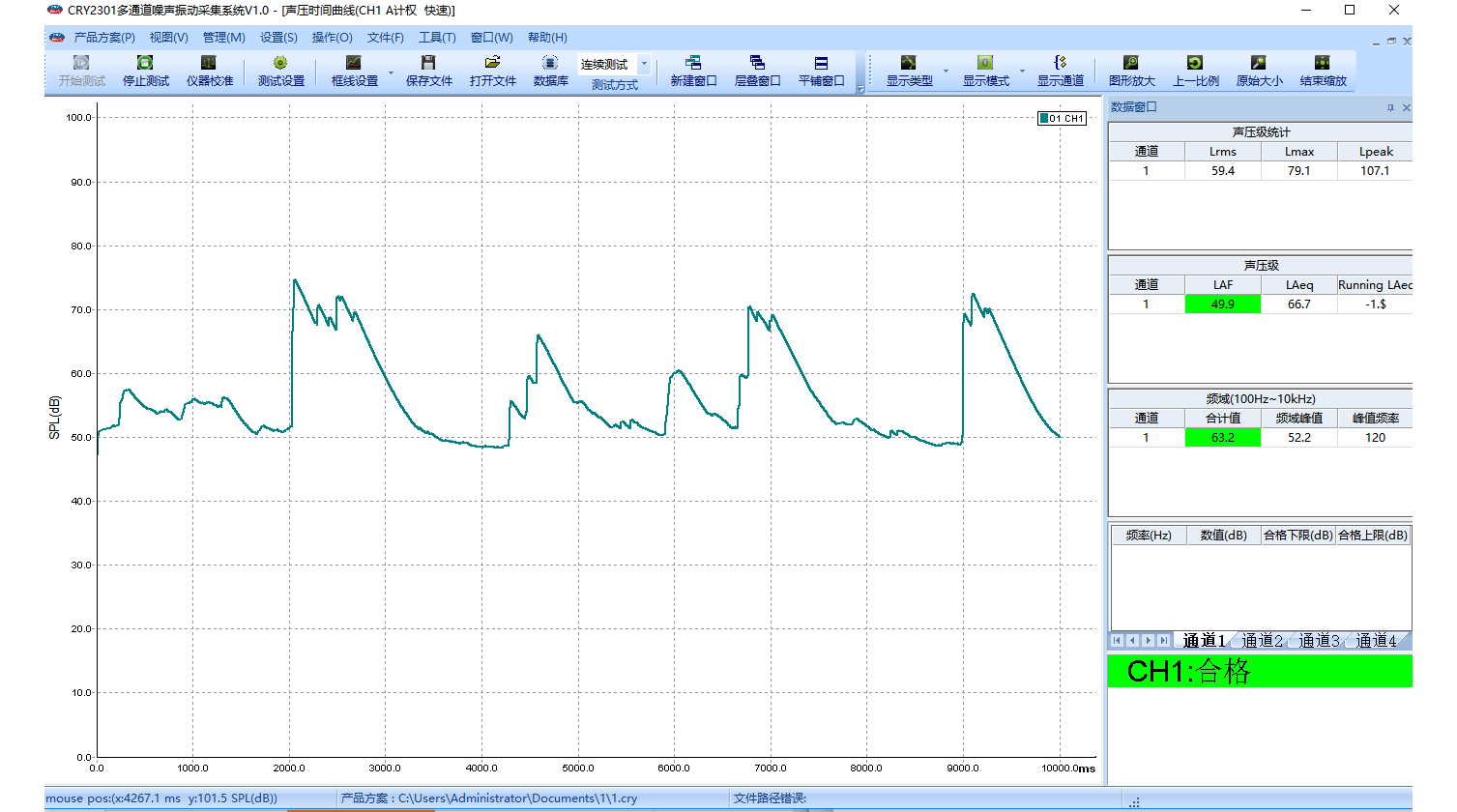

It can perform time domain noise analysis, octave analysis, and FFT spectrum analysis.
By using a USB interface for data communication and power supply, it is a composite USB device consisting of a USB Audio device and HID device.
It is compatible with 32-bit/64-bit Windows 7 / Windows 10 systems.
Dynamic range ≥ 110 dB, with no need for measuring range switching
Lower noise floor and high SNR
High industrial compatibility and quite adaptable to the working environment
Light-weight and easy to use

Technical specifications of CRY2301

Applicable Standards	IEC61672 (Class 1) and GB/T3785 (Class 1)
Communication Type	USB
Standard Microphone	CRY333
Measurement Range	25~130dBA (Due to slight differences in the sensitivity of the supported microphones, this value shall be subject to the actual product specification.)
Dynamic Range	≥ 110 dB， with no need for measuring range switching
AD sampling rate	48kHz
Detection mode	Full digital
Receiver noise	19dB(A)、21dB(C)、27dB(Z)
Frequency range	10Hz~20kHz
Frequency weighting	A、C、Z
Time weighting	F、S
Measurement indicator	Lp ,Leq ,Lmin ,Lmax
Octave analysis	1/1, 1/3, 1/6, 1/12, 1/24 octave
Spectrum analysis	FFT analysis
Supply voltage	USB 5 V power supply
Overall Dimension	ɸ24.5mm×111mm
Weight	115g
Operating conditions	-10～+50 ℃；RH: ≤ 90% (without condensation)
Operation system	Windows 7 / Windows 10, 32 / 64 bit
