ELECTRICAL & ACOUSTICAL TESTS CLIO11.42

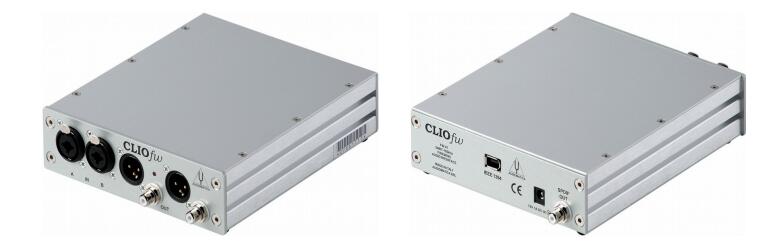

The CLIO System is a complete electro-acoustic analyzer
Compared to other measurement systems, CLIO concentrates the power of many different instruments into a single one.
Three different measurement techniques are available for system identification and characterization.
MLS & LogChirp analysis using either pseudorandom noise or logarithmic chirps as stimuliSinusoidal Sweeps using sinusoidal signals.
FFT, RTA and ‘Live’ Transfer Function letting you the choice of any stimulus, even music.
While other instruments offer one single possible measurement choice, CLIO permits you to view the physical phenomenon like frequency response, impedance or other parameters, from different points of view. The final result will be then validated by the consistency of these measurements: as any expert technician knows, this is the correct approach that should always be adopted.
TECHNICAL SPECIFICATIONS:
Two channels 24 Bit sigma-delta D/A Converter
Frequency range: 1Hz-90kHz
Frequency accuracy: >0.01%
Frequency resolution: 0.01Hz
Output impedance: 660Ohm
Max output level (Sine):17dBu (5.5Vrms)
Attenuation: 0.1 dB steps to full mute
THD+Noise(Sine):0.008%
Digital out: SPDIF
Power supply: IEEE1394 or 12V DC
Dimensions :16(w)x17(d)x4(h)
Weight: 0.8 kg
