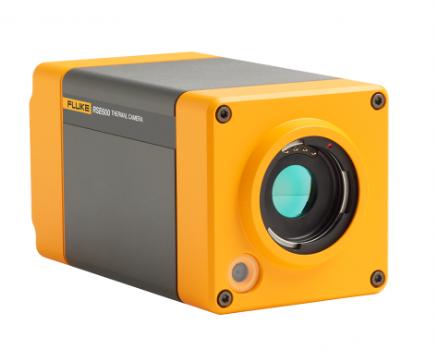

Fluke RSE600 Mounted Infrared Camera

Product overview: Fluke RSE600 Mounted Infrared Camera

Introducing the first-ever fully radiometric, mounted Fluke infrared cameras.

These tools are equipped with advanced features and software plug-ins to MATLAB® and LabVIEW®, which are ideal for continuously streaming and analyzing infrared data.

Designed for your research, science, and engineering needs, enhance your testing and quality assurance procedures by mounting the RSE600 to your workstation. Continuously stream up to 60 data frames per second directly to your computer to monitor minute temperature differences, and analyze videos frame-by-frame remotely from SmartView® desktop software. Enhance your viewing experience with optional add-on lenses to target different applications (analyzing from a distance, or getting the close-up details).

Don’t just see the heat. Stream, measure, and analyze it too.

With plug-ins to MATLAB® and LabVIEW®, the RSE Infrared Cameras are ideal for testing and development.

Specifications: Fluke RSE600 Mounted Infrared Camera

Key Features
IFOV with standard lens (spatial resolution)	0.93 mRad
Detector resolution	640 x 480 (307,200 pixels)
Field of view	34 °H x 25.5 °V
Minimum focus distance	15 cm (approx. 6 in)
Camera focus options	Focus is adjusted in SmartView® R&D desktop software
IR-Fusion® technology	Yes, in SmartView® R&D desktop software. Five modes of image blending (AutoBlend™ mode, Picture-in-Picture (PIP), IR/Visible alarm, Full IR, Full visible light) add the context of the visible details to your infrared image
Thermal sensitivity (NETD)	≤ 0.040 °C at 30 °C target temp (40 mK)*
Filter mode (NETD improvement)	Yes
Level and span	Smooth auto and manual scaling, in SmartView® R&D desktop software
Fast auto toggle between manual and auto modes	Yes, in SmartView® R&D desktop software
Fast auto-rescale in manual mode	Yes, in SmartView® R&D desktop software
Minimum span (in manual mode)	0.1 °C (0.18 °F), in SmartView® R&D desktop software
Minimum span (in auto mode)	<1.0 °C (<1.8 °F), in SmartView® R&D desktop software
Built-in digital camera (visible light)	5 megapixel industrial performance
Frame rate	60 Hz or 9 Hz versions
Digital zoom	Variable up to 16x in SmartView® R&D desktop software
*Best possible

Image capture
Memory options	Connect to SmartView® desktop software for storage to device or upload to Fluke Cloud™ for permanent storage Capture, save and analyze images in SmartView® desktop software
Image capture, review, save mechanism Image file formats	Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg and .avi) files
Software	Smartview R&D desktop software - streaming image capture and analysis Smartview Classic software - image analysis and reporting Compatible with MATLAB and LabView software
Export file formats with SmartView® desktop software	Bitmap (.bmp), GIF, JPEG, PNG, TIFF
Voice annotation	Yes
Text annotation	Yes
Video recording	Yes
File formats video	Non-radiometric (MPEG-encoded .AVI) and fully-radiometric (.IS3)
Remote display viewing	Yes, see the live stream of the camera display on your PC via Smartview R&D desktop software
Remote control operation	Yes, through Smartview R&D desktop software

Temperature measurement
Temperature measurement range (not calibrated below -10 °C)	-10 °C to +1200 °C (14 °F to +2192 °F)
Accuracy	± 2 °C or ± 2 %, whichever is greater
Reflected background temperature compensation	Yes
Transmission correction	Yes
Live line marker	Yes

Color Palettes
Standard palettes	8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Ultra Contrast™ palettes	8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra

General specifications
Color alarms (temperature alarms)	Yes, high temperature, low temperature, and isotherms (within range)
Infrared spectral band	8 μm to 14 μm (long wave)
Operating temperature	-10 °C to +50 °C (14 °F to 122 °F)
Storage temperature	-20 °C to +50 °C (-4 °F to 122 °F) without batteries
Relative humidity	10 % to 95 % non-condensing
Center-Point temperature measurement	Yes
Spot temperature	Yes, hot and cold spot markers
User-definable spot markers	Unlimited user-definable spot markers, in software
Center box	Expandable-contractible measurement box with MIN-MAX-AVG temp display
Electromagnetic compatibility	EN 61326-1:2013 IEC 61326-1:2013; (Industrial)
US FCC	CFR 47, Part 15 Subpart B Class A
Vibration	IEC 60068-2-26 (sinusoidal vibration): 3G, 11–200 Hz, 3 axis
Shock	IEC 60068-2-27 (mechanical shock): 50G, 6 ms, 3 axis
Size (H x W x L)	8.3 x 8.3 x 16.5 cm (3.3 x 3.3 x 6.5 in)
Weight (battery not included)	1 kg (2.2 lb)
Enclosure rating	IEC 60529: IP67 (protected against dust, limited ingress; protection against water spray from all directions)
Warranty	Two years (standard), extended warranties are available
Recommended calibration cycle	Two-years (assumes normal operation and normal aging)
Supported languages	Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
