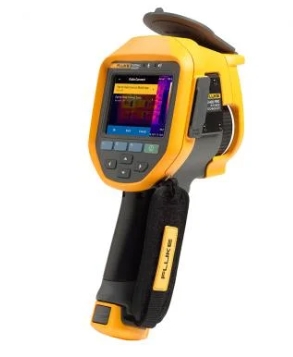

Fluke Ti480 PRO Infrared Camera

Product overview: Fluke Ti480 PRO Infrared Camera

Increased sensitivity

Capturing and displaying temperature variances makes all the difference when diagnosing problems. The Fluke Ti480 PRO Infrared Camera has increased thermal sensitivity to capture minute differences and the latest Fluke technology for on-screen clarity to make it easy to visual issues in the field. With the enhanced measurement accuracy and the wider dynamic temperature range—up to 1000 °C with NETD as low as 50 mK—technicians can collect precise information for making informed decisions that boost the company’s return on investment.

Specifications: Fluke Ti480 PRO Infrared Camera

Key features
IFOV with standard lens (spatial resolution)	0.93 mRad, D:S 1065:1
Detector resolution	640 x 480
SuperResolution	Captures and combines 4x the data to create a 1280 x 960 (614,400 pixels) image
Infrared Resolution	307,200 pixels
MultiSharp™ Focus	Yes, focused near and far, throughout the field of view
LaserSharp® Auto Focus	Yes, for consistently in-focus images
Laser distance meter	Yes, calculates distance to the target for precisely focused images and displays distance on screen
Advanced manual focus	Yes
Ruggedized touchscreen display	3.5 inch (landscape) 640 x 480 LCD
Rugged, ergonomic design for one-handed use	Yes
Digital zoom	2x and 4x

Temperature measurement
Temperature measurement range (not calibrated below -10 °C)	≤-20 °C to 1000 °C (-4 °F to 1832 °F)
Accuracy	±2 °C or 2% (at 25 °C nominal, whichever is greater)
Thermal sensitivity (NETD)*	≤0.05 °C at 30 °C target temp (50 mK)
On-screen emissivity correction	Yes (both value and table)
On-screen reflected background temperature compensation	Yes
On-screen transmission correction	Yes
^*Best possible

Wireless connectivity
To PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available)
Fluke Connect® app compatible	Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing
Fluke Connect® Assets optional software	Yes*, assign images to assets and create work orders. Easily compare measurement types in one location
Fluke Connect® Instant Upload	Yes*, connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC
Fluke Connect® tool compatible	Yes*, connects wirelessly to select Fluke Connect enabled tools and displays measurements on camera screen

IR-Fusion® technology
Adds the context of the visible details to your infrared image
AutoBlend™ mode	Min, Mid, Max IR plus full visible on camera; continously variable in software
Picture-In-Picture (PIP)	Yes
Built-in digital camera (visible light)	5 MP

Lenses
Standard lens	IFOV (spatial resolution)	0.93 mRad, D:S 1065:1
	Field of view	34 °H x 24 °V
	Minimum focus distance	15 cm (approx. 6 in)
	IR-Fusion® technology	Picture-In-Picture and full screen
Optional 2x telephoto smart lens	IFOV (spatial resolution)	0.46 mRad, D:S 1529:1
	Field of view	17 °H x 12 °V
	Minimum focus distance	45 cm (approx. 18 in)
	IR-Fusion® technology	Picture-In-Picture and full screen
Optional 4x telephoto smart lens	IFOV (spatial resolution)	0.23 mRad, D:S 2941:1
	Field of view	6 °H x 4.5 °V
	Minimum focus distance	1.5 cm (approx. 60 in)
	IR-Fusion® technology	N/A
Optional wide-angle smart lens	IFOV	1.85 mRad, D:S 377:1
	Field of view	48 °H x 34 °V
	Minimum focus distance	15 cm (approx. 6 in)
	IR-Fusion® technology	Full screen

Models: Fluke Ti480 PRO Infrared Camera

FLK-Ti480 PRO 60 Hz

Fluke Ti480 PRO Infrared Camera 60 Hz

Part#: 4947326
UPC#: 0 95969 86269 1

Includes:

Thermal imager with standard infrared lens
AC power supply and battery pack charger (including universal AC adapters)
Two, rugged lithium ion smart battery packs
USB cable
HDMI video cable
4 GB micro SD card
Rugged, hard carrying case
Adjustable hand strap
Available by free download Fluke Connect® SmartView® desktop software and users manual
