We have finally developed a quality-guaranteed product. The product is called the RAD-S101 Geiger counter radiation detector. The result of upgrades in technologies proves to be very positive. The finished RAD-S101 Geiger counter radiation detector is characterized by stable quality. It can play out its greatest value in the field(s) of Other Test Instruments. we have long desired to become one of the most influential enterprises in the industry. At present, we are busy improving our capabilities in product manufacturing and gathering talents especially technical talents to develop our own core technologies.
| Measurement type: | Hard beta rays, gamma rays, and X-rays | Measuring principle: | Thin-walled metal Geiger counting tube |
| Measuring range: | 0.15~36000 μSv/h | Sensitivity: | About 450cpm/mR/h |
| Service life: | 2X1010 | Data output: | RS485 |

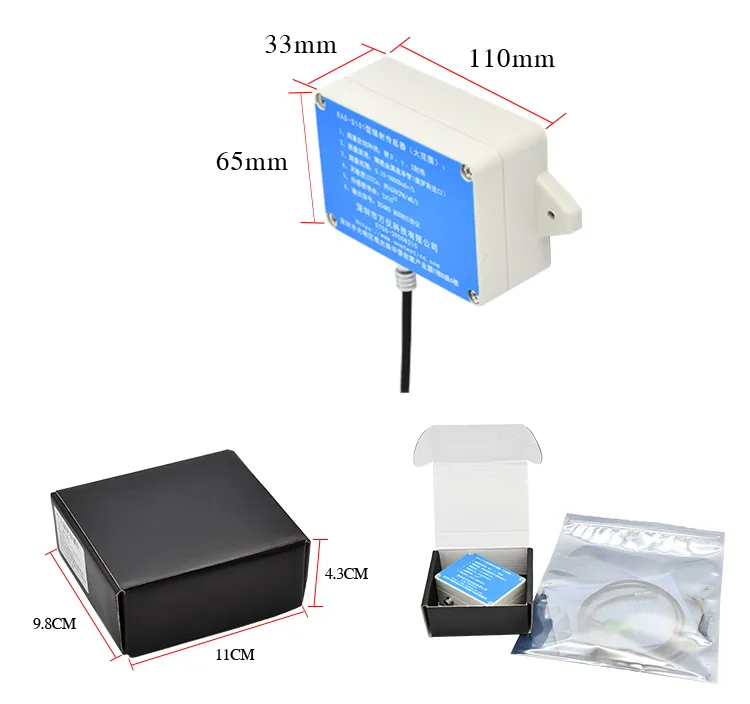

| size: | Length 110*width 65*height 33mm | power supply: | 7-24VDC |
| power cable: | 1 meter |
The RAD-S101 fixed radiation sensor module adopts the all-metal GM counter imported from Russia. The data is stable and reliable. It can quickly detect the hard β, γ and X-rays in the environment or products in real time, and quickly find the radiation source, which is mainly used for radiation. Monitoring system integration, X-ray machine leaks, security inspection machines, hospitals and other occasions have been calibrated at the factory, and users can directly read data through digital communication protocols.
An external sound and light alarm can be connected to remind on-site personnel to pay attention to radiation protection and avoid continuous radiation exposure. At the same time, the measurement data can be uploaded to the radiation safety management system in real-time, which is convenient for the storage of the measurement data and the query and statistical analysis of the subsequent historical data and alarm information.
Product Features
1. Efficient GM tube detector, high sensitivity, fast response
2. Wall-mounted installation, and can be connected to the external high decibel sound and light alarm
3. The sensor can be equipped with GPRS data transmission function; The transmission distance is not limited
4. With a standard RS485 interface, real-time transmission of nuclear radiation monitoring data, to provide online data for the host platform
Technical index
| Measuring principle | Thin-walled metal Geiger counting tube | Measurement type | Hard beta rays, gamma rays, and X-rays |
| Measuring range | 0.15~36000 μSv/h | Sensitivity | About 450cpm/mR/h |
| Service life | 2X1010 | Data output | RS485 |
| size | Length 110*width 65*height 33mm | Wiring | 1 meter |
