Solid Negative Ion Detector



1. The use of the product:

(1)Negative ion testing of various powders, such as natural ores, negative ion powder, tourmaline (Tomalin), meteorite, and other negative ion content detection and evaluation.

(2)Utilization and testing of high-function materials and solid-type negative ion materials.

(3)R&D testing and performance evaluation of negative ion health products by the R&D department.

(4)Testing and evaluation of various solid anion products, such as R&D and testing of anion bracelets, anion cushions, energy cups, steam rooms, rock pan baths, paints, and coatings.

(5) Testing and evaluation of various liquid negative ion products, such as R&D and testing of nano-silver, negative ion masks, negative ion cleansing milk, etc.



2. Innovative features of the product

(1)HK-8010PRO adopts the advanced GM tube ion detection technology from the U.S.A., the measurement is accurate and stable.

(2)The instrument is beautifully designed and compact, easy to use and carry, and the ultra-thin thickness of 31mm is convenient for customers to measure products with space limitations.

(3)Unique sensor protection film, maximizes the avoidance of customers due to improper use of the sensor damage, great cost savings, and improves test efficiency.

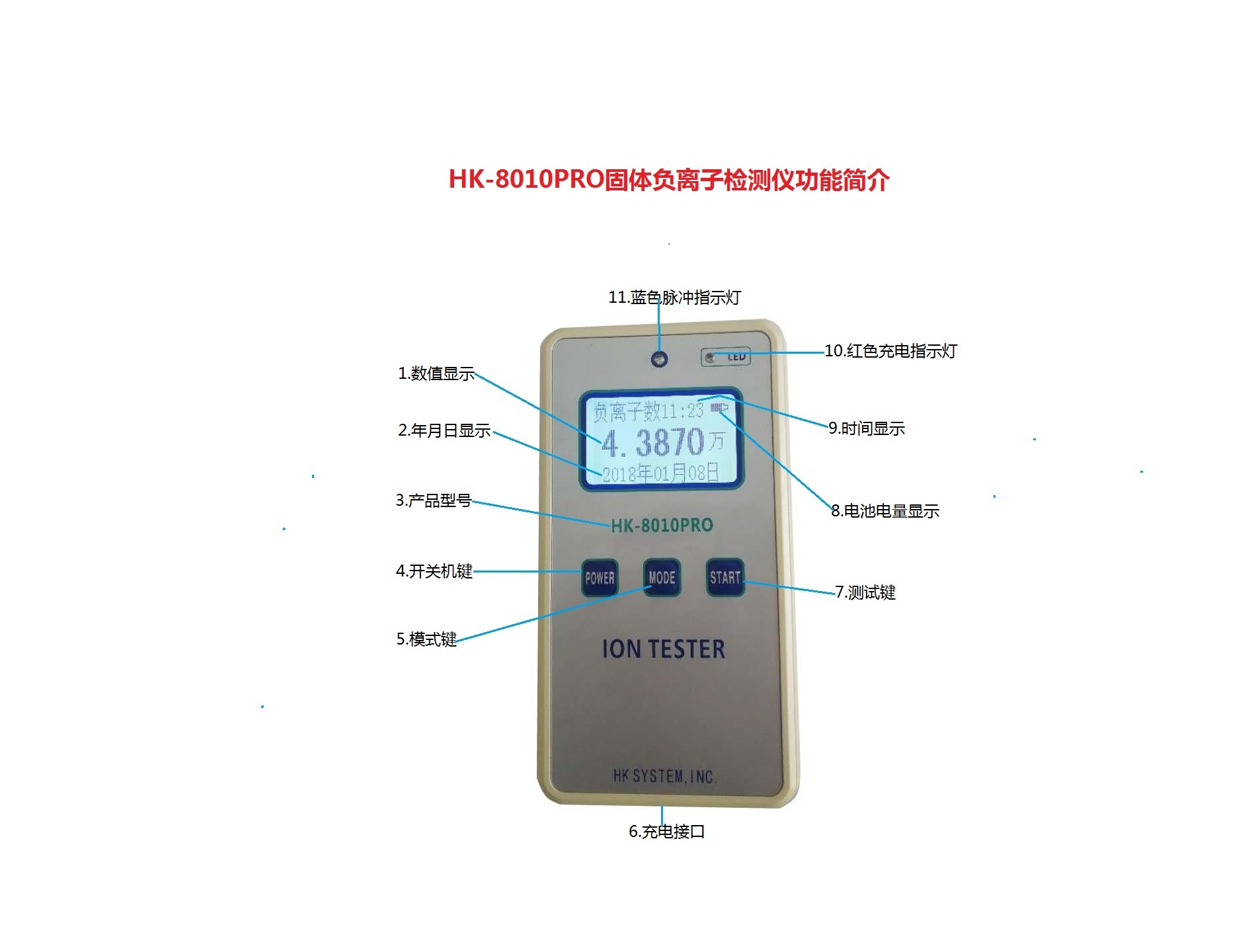

(4)Large screen display, with backlight function of more than 100,000 values directly readable and clear, a variety of measurement modes to provide users with quick and easy, accurate measurement.

(5) Built-in rechargeable battery, for the user to bring convenience and savings, ultra-low power consumption to facilitate the user to use for a long time, automatic shutdown function can save power consumption.

  1. Product technical indicators
Detector high-performance GM ion detector
Measuring range 1-100,000个/cm3
Measurement Error ±5%

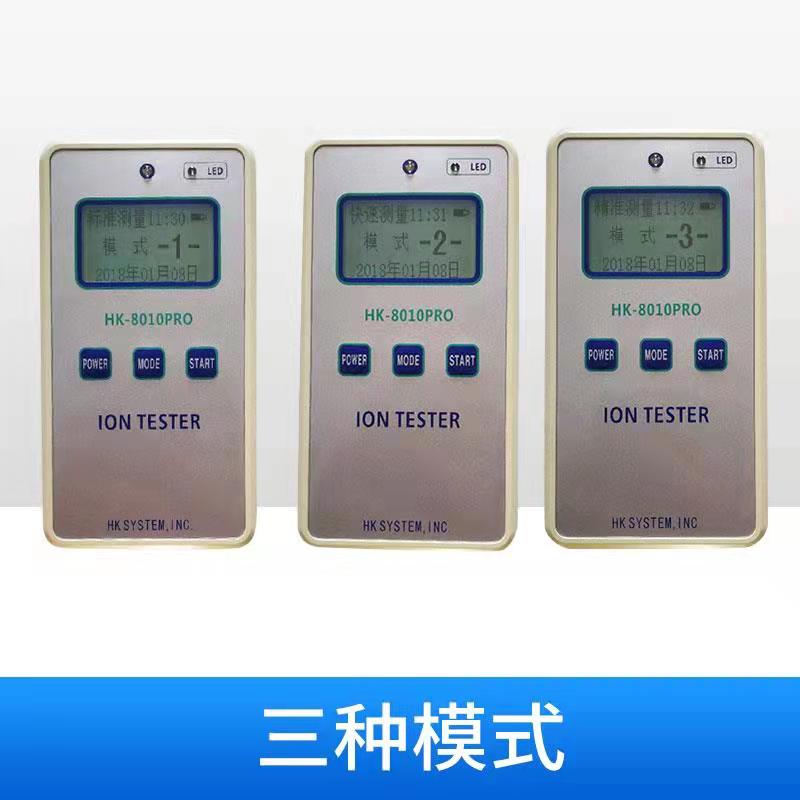

Measurement Mode Model 1, Standard Measurement Mode

The detector tests for 20 seconds, and then the average value of the test is shown on the display.

Model 2, Fast Measurement Mode.

The detector is tested for 10 seconds and the average value is shown on the display.

Model 3, Precision Measurement Mode

The detector measures for 30 seconds and the average value is shown on the display.

LCD display Large99999. 9screen for easy and intuitive readings.
Auto power off function Auto power off function without operation for 10 minutes to save power consumption.
Power supply Adopts high-capacity rechargeable battery
Size 143 X 77 X 31mm
Weight Approx. 0.35kg

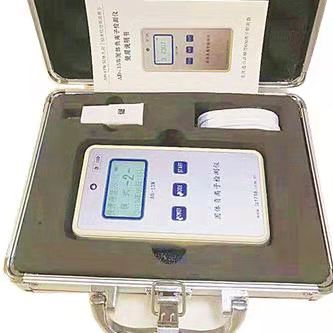

Accessories Carrying case, manual, charger, charging cable
Environment -20℃-60℃,5%-95%RH
Certification CE
