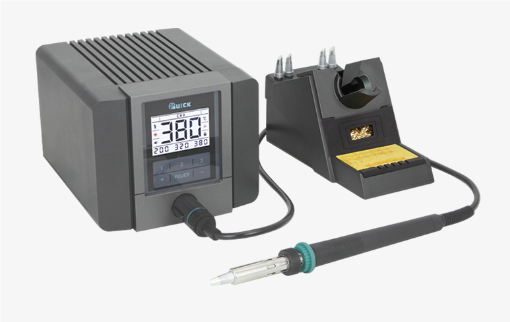

QUICK TS2300D intelligent lead-free soldering station
1、Intelligent allocation of output power
2、Quickly switch between 3 temperature points
3、ESD electrostatic monitoring
4、Password locking ensures process parameters
5、Automatic sleep and shutdown function
Characteristic
1. High frequency eddy current heating causes rapid heating of the welding nozzle itself.
2. The sensor is placed at the top of the heating element, with rapid temperature recovery and precise temperature control.
3. Intelligent allocation of output power with changes in solder joint size, up to 150W.
4. The touch buttons have a beautiful appearance, are waterproof and moisture-proof, easy to operate, and have a long lifespan.
5. Quickly switch between 3 different temperature points to meet different welding process requirements for different products.
6. Password locking function effectively ensures that production process parameters are not arbitrarily modified.
7. Real time monitoring of ESD grounding function to ensure the safety of electrostatic protection for welding products.
8. More considerate power-off safety protection design.
9. Free switching between Fahrenheit and Celsius temperature scale modes. Intelligent sleep function, awakened by capacitive sensing handle.
10. Automatic shutdown function, reducing consumable costs and saving energy.
Specifications
Model | TS2300C | TS2300D |
Power | 150W | 150W |
Heating principle | High-frequency eddy current | High-frequency eddy current |
Working voltage | 110V/220V AC | 110V/220V AC |
Temperature range | 100~480°C | 100~480°C |
Temperature stability | ±2°C | ±2°C |
Welding nozzle to ground resistance | <2Ω | <2Ω |
Welding nozzle to ground potential | <2mV | <2mV |
Handle model | TSS31B | TSS31B |
Welding nozzle model | 500series | 500series |
Heating core model | H1205A | H1205A |
Sensor model | S1205A | S1205A |
Welding nozzle/heating element | Split type | Split type |
Dimensions (WxDxH) | 137*168*114mm | 137*168*114mm |
Weight | about 2.1kg | about 2.1kg |
Computer control | YES | NO |
