Brief introduction

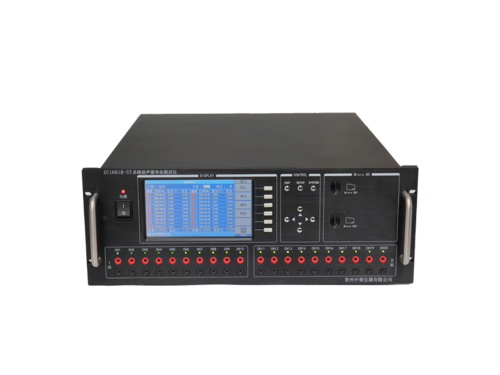

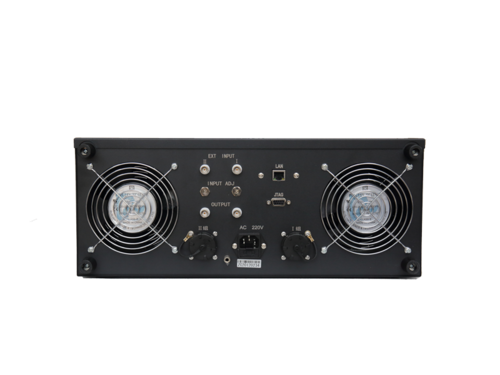

The ZC1681B-ST multi-channel speaker life tester is a newly upgraded stand-alone version of the aging tester. The outstanding function is that the setting and operation are very simple, intuitive, and clear, suitable for laboratory personnel to operate, the new internal structure, faster heat dissipation, and more stable quality, and Higher reliability.
Scope of application
Mobile phone speakers, receivers, MP3, tablet computers, laptop speakers, low-power TV speakers, etc.
Features
- Signal source: Built-in sine wave generator and sweep frequency controller, dual SD card signal output, two groups can be used for aging test of different signals
- Two groups of voltages can be arbitrarily set up to 20 channels for simultaneous monitoring, automatically record and display voltage/current/DCR/temperature rise/test time and status
- The test voltage is automatically corrected, the accuracy can reach ≤2%, and the display is 0.001V

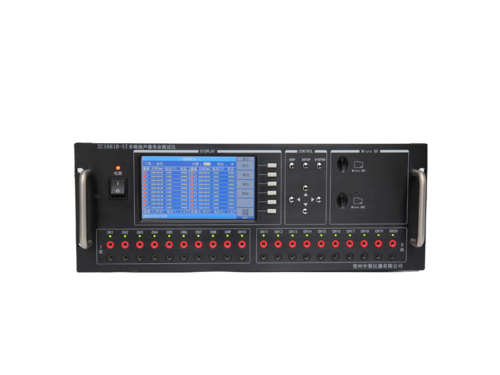

- 7-inch LCD panel, richer display content, larger fonts, easy to observe
- Temperature rise measurement range: 0–200°℃, measurement accuracy ≤5%±1℃
- Support multiple working modes for normal intermittent debugging, the smallest intermittent support 0.5S, and still can accurately measure voltage
Technical index
| Model | ZC1681B-ST |
| Maximum number of connectable channels | 20 channels, divided into two groups, channel 1~10 is one group, channel 11~20 is another group,
each group of test parameters （including signal type）can be set independently. The voltage of each channel can be automatically corrected.
|
| Aging test time | 0000：00：00-9999：59：59， Maximum is 9999h， Can be set arbitrarily |
| Monitoring method | 20 simultaneous monitoring, automatic recording, and display |
| State judgment | Open circuit, short circuit, or low impedance |
| Fault warning | The location of the faulty channel is displayed on the screen |
| Sine wave generator | The built-in sine wave generator |
| Test frequency range | 20Hz ～ 20000Hz |
| Frequency accuracy | ±0.05% |
| Frequency stability | Better than 60ppm |
| THE | ≤0.5% @ 1k Sine |
| Sweep mode can be selected | Linear, logarithmic |
| Audio source format | MP3， WMA， WAV |
| Power amplifier | |
| Maximum output power per channel | 12W |
| Maximum total output power | 300W |
| Frequency response | 20Hz ～ 20000Hz（±0.25dB） |
| Load impedance | 4Ω~ 120Ω |
| Maximum test current | ≤1.500A |
| Adjustable range of output voltage | 0.100 V ~ 12V（The adjustment accuracy is 0.001V） |
| Automatic voltage correction | Precision ≤2% |
| True RMS measurement voltage | Precision ≤2% |
| Temperature rise measurement | Range 0–200°C， Range ≤5%±1℃ |
| Voice coil DCR resistance measurement | Range ≤0.5%（1Ω-40Ω） |
