Brief introduction

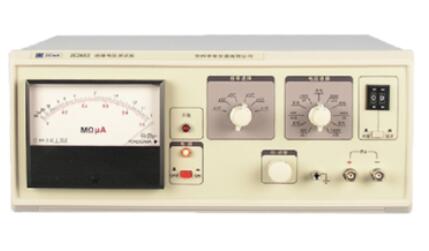

The ZC2682 insulation resistance tester is a universal one, which can satisfy various electronic components as indicated by the pointer. Dielectric materials, equipment and other insulation performance testing instruments. It has the characteristics of fast test speed, good stability, and bad judgment.
Technical index
| Model | ZC2682 | |
| Resistance test range | 100kΩ-10TΩ | |
| Basic accuracy | R＜10GΩ R≥10GΩ R≥1TΩ |
±2% of reading ±5 digits |
| ±5% reading ±5 digits | ||
| ±10% of reading ±5 digits | ||
| Range method | Manual | |
| Trigger method | —— | |
| Test speed | Resistive element: ≤0.5 seconds Guest element: 0.5-5 seconds |
|
| Test signal | ||
| Test voltage | 10V、50V、100V、250V、500V、1000V | |
| Voltage accuracy | ±2% | |
| Test current range | ≤100uA | |
