Brief introduction

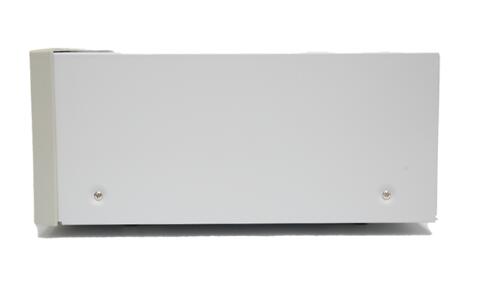

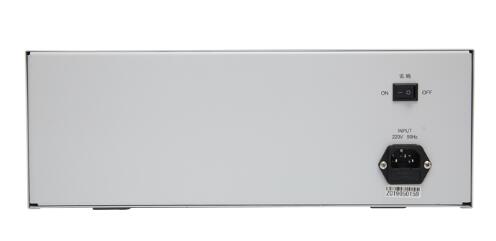

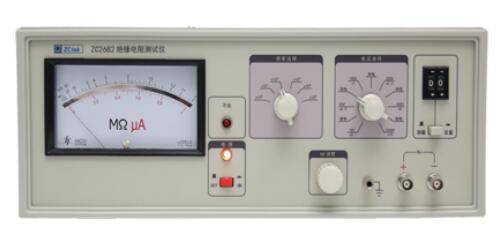

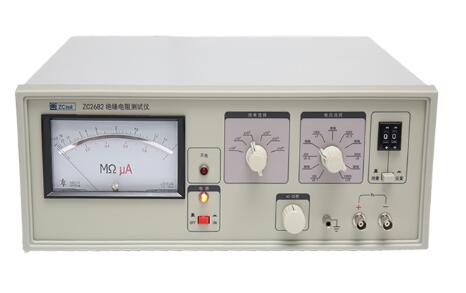

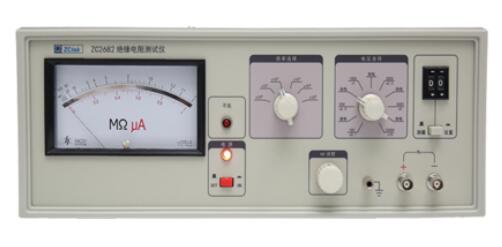

The ZC2683 insulation resistance tester is a general-purpose instrument that can meet the insulation performance testing of various electronic components, dielectric materials, equipment, etc. as indicated by the pointer. It has the characteristics of fast test speed, good stability, and bad judgment.
Technical index
| Model | ZC2683 | |
| Resistance test range | 100kΩ-10TΩ | |
| Basic accuracy | R＜10GΩ R≥10GΩ R≥1TΩ |
±2% of reading ±5 digits |
| ±5% reading ±5 digits | ||
| ±10% of reading ±5 digits | ||
| Range method | automatic/manual | |
| Trigger method | Internal, external | |
| Test speed | 3 （times/second） | |
| Test signal | ||
| Test voltage | 10V、25V、50V、75V、100V、125V、250V、500V、750V、1000V | |
| Voltage accuracy | ±2% | |
| Test current range | ≤100uA | |
