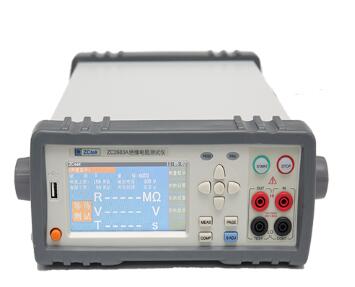

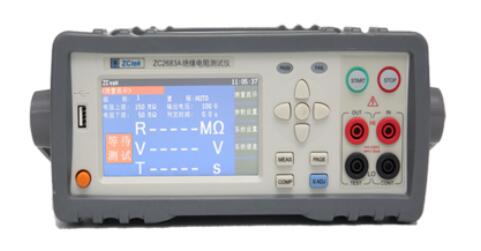

ZC2683A Insulation Resistance Tester

Brief introduction

The ZC2683A insulation resistance tester is a measuring instrument for measuring the insulation performance of electronic components, dielectric materials, equipment, wires, and cables. The instrument is controlled by a single-chip microprocessor, which is easy to operate and has complete functions. It has the characteristics of a wide measuring voltage range and fast speed. The instrument uses a 24-bit color 4.3-inch color LCD screen with touch function, simple operation, fast test speed, and can intuitively display output terminal voltage, measurement range resistance, insulation resistance of the measured object and other parameters. The instrument has functions such as automatic range or lock, sorting output and external trigger input interface, making the test more direct, convenient, and reliable. This machine has a USB interface, and the panel function can be completely controlled by the computer. The test results can also be sent back to the computer through the USB interface for storage, or the data can be directly stored in a USB flash drive.

Performance characteristics

• Chinese and English optional operation interface
• Dual display of insulation resistance and leakage current
• Clear function
• Contact inspection function for capacitive materials
• Programmable sequential test mode
• Quick test: 30ms
• 6 ranges, manual or automatic mode
• Four gear comparison function: three gears are qualified, one gear is unqualified
• The measurement result data can be saved by U disk, and the system firmware can be upgraded through U disk
• Footswitch trigger function (optional)
• Support MODBUS protocol
