Brief introduction
Coil products (such as transformers, motors, etc.) due to winding materials, magnetic materials, frameworks, processing technology, and other factors will cause the insulation performance of the coil layer, turn, and pin to drop.

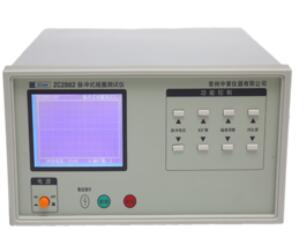

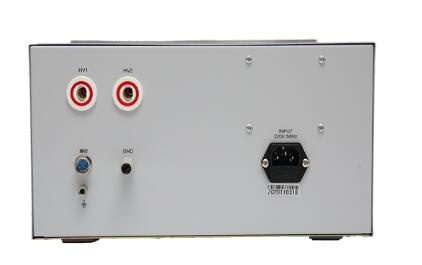

ZC2883/ZC2882 series impulse coil tester is a new generation of insulation performance tester for coil products developed by high-speed sampling technology, which can provide test solutions for most coil products.
ZC2882 adopts a real-time comparison method. The instrument alternately applies impulse voltage with a specified peak value and wavefront time to the DUT and standard parts of the same design. By comparing the difference between the two oscillating waveforms, the insulation between the coils can be judged. Good or bad.
Performance characteristics
- ZC2882 direct comparison pulse coil tester
- Using advanced digital signal processing technology
- Low inductance test, minimum 10uH, low energy test, no damage to the coil
- Maximum 20MSPS sampling rate
- 320×240 dot matrix graphic LCD display
Technical index
| Model | ZC2882 |
| Measurement methods | Two-way comparison method, input the waveforms of the standard part and the tested part at the same time for comparison |
| Pulse voltage range | 300V-5000V |
| Pulse voltage accuracy | ±5% |
| Pulse voltage step | 100V |
| Pulse high voltage control | The switching power supply is controlled by MCU |
| Number of impacts | Continuous INT |
| Trigger method | Manual, Foot control |
| Detection and judgment method | Comparison of waveform differences by visual inspection |
| Inductance test range | ≥20uH |
| Maximum sampling rate | 20MSPS |
| Monitor | 320×240 dot LCD screen, 240×200 dot waveform display |
| Dimensions | 315mm×165mm×320mm |
| Weight | About 6kg |
