Brief introduction
Coil products (such as transformers, motors, etc.) due to winding materials, magnetic materials, frameworks, processing technology and other factors will cause the insulation performance of the coil layer, turn, and pin to drop.

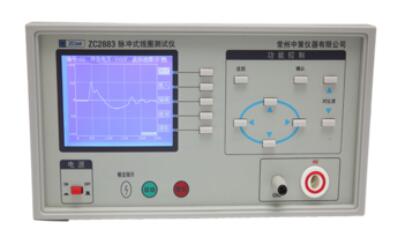

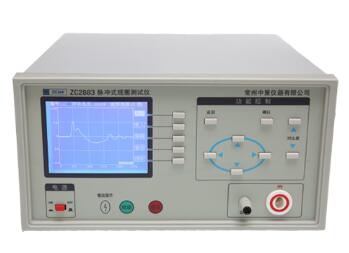

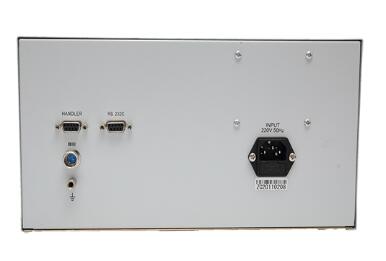

ZC2883/ZC2882 series impulse coil tester is a new generation of insulation performance tester for coil products developed by high-speed sampling technology, which can provide test solutions for most coil products.
ZC2883 stores the sampled waveform of the standard coil in the instrument, compares the measured waveform with the standard waveform during testing, and judges the tested coil according to the four waveform discrimination methods set (area, area difference, phase difference, corona, etc.) The pros and cons.
Performance characteristics
- ZC2883 storage comparison pulse coil tester
- Using advanced digital signal processing technology
- Low inductance test, minimum 10uH, low energy test, no damage to the coil
- Maximum 20MSPS sampling rate
- 320×240 dot matrix graphic LCD display
Technical index
| Model | ZC2883 |
| Measurement methods | Comparison of measured waveforms with stored standard waveforms |
| Pulse voltage range | 300V-5000V |
| Pulse voltage accuracy | ±5% |
| Pulse voltage step | 100V |
| Pulse high voltage control | The switching power supply is controlled by MCU |
| Number of impacts | Single EXT （including multiple times 1-99）, continuous INT |
| Trigger method | Manual, Foot control |
| Detection and judgment method | Area, area difference, phase, corona discharge |
| Repeatability | Area: ±1%, area difference: ±1% |
| Inductance test range | ≥10uH |
| Maximum sampling rate | 20MSPS |
| Waveform storage capacity range | 100 waveforms and parameters |
| Monitor | 320×240 dot LCD screen 240×200 point waveform display |
| Discriminant output | PASS/FAIL display, alarm |
| Dimensions | 315mm×165mm×320mm |
| Weight | About 6kg |
